72" Tool Box Set Cabinet + Hutch R-CRX72301901SET

SKU: CRX72301901SET
Manufacturer part number: CRX72301901SET
Free shipping *

$3,799.00

Rollcabs.com features a 72" wide bottom rollaway tool cabinet that offers a full 30" depth - not always the case with other 72" tool storage box options. This tool box has been designed to withstand the heavy duty activities of a hard-working mechanic.

*** RollCabs.com CRX723019RC is built by Extreme Tools and carries the same warranty as all RX Series tool boxes. All drawer slides in the CRX723019RC are rated @ 250 lbs per pair. or 500 lb. 2 pair per drawer.

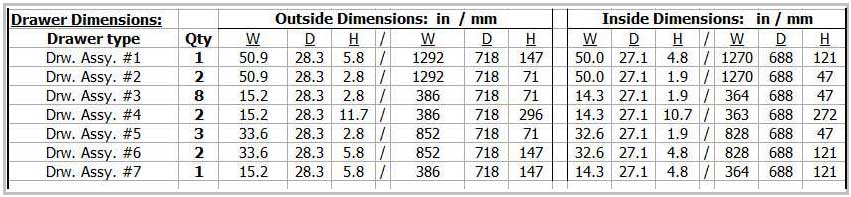

CRX723019RC Roller Cabinet Drawer Dimensions

RCRX7230 DRAWER DIMENSIONS

Features


Designed with expanded drawer width
Deep drawers with double slides
EVA drawer liners included
(6) 6" x 2" casters (4 lockable swivel + 2 rigid
Finished with high gloss powder coat
Worktop located on the top of the unit is made of fiber board and offers extra space for projects
Full-width, polished solid aluminum drawer pulls are self-latching, quick-release drawer pulls
Full-extension ball bearing glides used on drawers
Load Capacity: 250 lbs. for each set of ball bearing glides, double glide drawers 500 lbs.
Tubular coded lock and keys
Dimensions: 72”W x 30”D x 47”H
Net Weight: 946 lbs

Construction

Top panel: 19 gauge
Bottom panel: 21 gauge
Back and sides: 18 gauge
Top reinforce support: 21 gauge
Inner panels: 19 gauge
Drawer front: 18 gauge
Drawer back: 21 gauge
Drawer body: 21 gauge
Caster channels: 12 gauge
Total Capacity: 40728.32 cubic inch

Drawers

Number of Drawers: 19
Slides (25 pairs): Full extension ball bearing slides
Drawer Load Rating: 250 lbs per set of slides - 2 pairs of ball bearing slides for drawers over 4" deep equals 500lbs capacity
Drawer Pulls: High polished AL extrusion quick release

Finishing Features:

Type of finish unit: AkzoNobel, high gloss, Blue: EJ01RC, Black: EN056ZA
Vertical Side Trim: Two polished AL trims to be installed using 3M Adhesive on outer vertical frame
Side Handle: Stainless steel 304 formed handle (uninstalled)
Lock: ABA tubular coded lock and chrome plated bezel and keys. EX01, EX02, EX03 & EX04
Casters (6 pcs) installed: 6" x 2": 4 lockable swivel, 2 rigid on left, load rated 900lb on each
Top: 72" x 30" x 1/2 MDF Top with both side lamination and PVC glued edges
Drawer handle: Polished AL extrusion parts with quick release feature

CRX723001HC Top Tool Hutch Features
CRX723001HC top tool hutch measures 72"L X 30"W X 22 1/4"H
Accessory air tool holder included
Rear steel wall of hutch are preformed with 1/4" holes (pegboard style) for organizing tools
Tool storage display shelf
Secure locking door
Door rides on heavy track/channel for easy operation
2 struts assist door travel for smooth operation
110 Volt power strip

NEED MORE INFO?

WARRANTY ON THIS TOOL BOX: 5 Year Limited Warranty.

SHIPPING DETAIL

More About Upgraded CRX Series Tool Boxes

"Just unboxed my new toolbox! Wow it is so nice I wasn’t sure what to expect since I’ve never seen anyone with this brand. But if your in the market for a new box this is 3x the box for the money compared to anything else. Very impressed. They are very close to and in some ways they are rated better than Snap On. And 1/4 the price. They have the best prices trust me I researched for about a month. And free shipping!!!"
-John H., Lowell, Arkansas

Rollcabs.com complete tool storage product line is strictly manufactured by Extreme Tools.

The RX Series, made by Extreme Tools, has been modified by us, with improvements and upgrades, and is called the CRX Series on this website.

The following list of improvements are reflected in the RCRX Series.

Part number (Extreme's "RX" Series) change to CRX to designate the following upgrades:

  • All boxes with the CRX prefix are labeled RollCabs.com and follow the same warranty as Extreme Tools products.
  • On this CRX tool box, the load capacity is 250 lbs. for each set of ball bearing glides, double glide drawers 500 lbs.
  • CRX series use rubber drawer liners in place of foam drawer liners
  • CRX series roll cabinets include new, thick protective work panel in place of foam pad.
  • All CRX toolboxes are not only reduced in price but have added benefits compared to the RX Series Extreme Tools' tool boxes!
