CHECK OFF YOUR CHOICE AT TOP OF THIS PAGE
FOR A FREE SOCKET SET!
LIMITED TIME OFFER.
1. Standard 1/2" Drive set SAE 3/8" to 1 1/2"
or
2. Metric 9mm to 30mm
Deep and Shallow Sockets
This 72" 3 bank tool cabinet with wheels includes 19 drawers, and was developed to handle all types of heavy duty activities while working on garage projects.
*** RollCabs.com CRX722519RC is built by Extreme Tools and carries the same warranty as all RX Series tool boxes. All drawer slides in the CRX722519RC are rated @ 150 lbs per pair rather than standard 100 lbs per pair found on the Extreme RX722519RC.
72" Roller Tool Cabinet Features
Designed with expanded drawer width
Deep drawers with double slides
EVA drawer liners
(6) 6" x 2" casters (4 lockable swivel + 2 rigid
Finished with high gloss powder coat
Worktop located on the top of the unit is made of fiber board and offers extra space for projects
Full-width, polished solid aluminum drawer pulls are self-latching, quick-release drawer pulls
Full-extension ball bearing glides used on drawers
Load Capacity: 150 lbs. for each set of ball bearing glides, double glide drawers 300 lbs.
Tubular coded lock and keys
Dimensions: 72”W x 25”D x 47”H
Net Weight: 751 lbs
Construction
Top panel and Inner Panels: 19 gauge
Bottom panel and top reinforce support: 21 gauge
Back and sides: 18 gauge
Drawer front: 18 gauge
Drawer back and drawer body: 21 gauge
Caster channels: 12 gauge
Total Capacity: 33882.521 cubic inch
Drawers
Number of Drawers: 19
Slides (25 pairs): Full extension ball bearing slides
Drawer Load Rating: 150 lbs per set of slides - 2 pairs of ball bearing slides for drawers over 4" deep equals 300lbs capacity
Drawer Pulls: High polished AL extrusion quick release
Quiet ride rubber non-skid drawer liner
Finishing Features:
Type of finish unit: AkzoNobel, Hi gloss, Blue: Pantone 2132 or 2145, Black: Ral 9005, Red: 3002
Vertical Side Trim: Two polished AL trims to be installed using 3M Adhesive on outer vertical frame
Side Handle: Stainless steel 304 formed tubing handle
Lock: ABA tubular coded lock and chrome plated bezel and keys. EX01, EX02, EX03 & EX04
Casters (6 pcs) installed: 6" x 2": 4 lockable swivel, 2 rigid on left, load rated 900lb on each with M8 hex bolt, flat and lock washer
Drawer handle: Polished AL extrusion parts with quick release feature
|

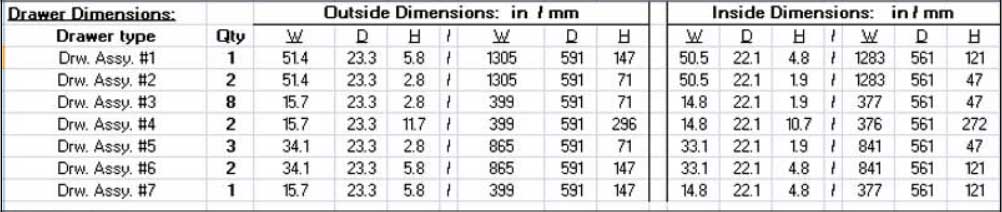

DRAWER DIMENSIONS
Drawer type
|
Qty
|
OUTSIDE DIMENSIONS (In.)
|
|
INSIDE DIMENSIONS (In.)
|
|
Drw. Assy. #1
|
1
|
51.4
|
23.3
|
5.8
|
|
50.5
|
22.1
|
4.8
|
|
Drw. Assy. #2
|
2
|
51.4
|
23.3
|
2.8
|
|
50.5
|
22.1
|
1.9
|
|
Drw. Assy. #3
|
8
|
15.7
|
23.3
|
2.8
|
|
14.8
|
22.1
|
1.9
|
|
Drw. Assy. #4
|
2
|
15.7
|
23.3
|
11.7
|
|
14.8
|
22.1
|
10.7
|
|
Drw. Assy. #5
|
3
|
34.1
|
23.3
|
2.8
|
|
33.1
|
22.1
|
1.9
|
|
DM. Assy. #6
|
2
|
34.1
|
23.3
|
5.8
|
|
33.1
|
22.1
|
4.8
|
|
Drw. Assy. #7
|
1
|
15.7
|
23.3
|
5.8
|
|
14.8
|
22.1
|
4.8
|

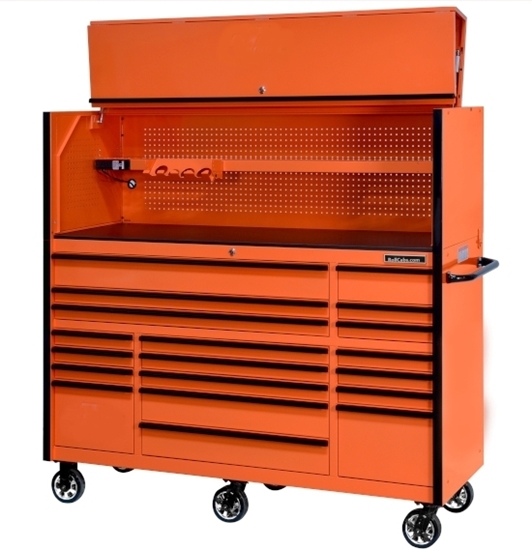

CRX722501HC 72" Top Hutch Features
Dimensions: 72"L X 25"W X 22 1/4"H
Accessory air tool holder included
Rear steel wall of hutch are preformed with 1/4" holes (pegboard style) for organizing tools
Tool storage display shelf
Secure locking door
Door rides on heavy track/channel for easy operation
2 struts assist door travel for smooth operation
110 Volt power strip
NEED MORE INFO?
WARRANTY ON THIS TOOL BOX
SHIPPING DETAIL
Choosing the Best Tool Box for You
More About Upgraded R-CRX Series Tool Boxes
"Just unboxed my new toolbox! Wow it is so nice I wasn’t sure what to expect since I’ve never seen anyone with this brand. But if your in the market for a new box this is 3x the box for the money compared to anything else. Very impressed. They are very close to and in some ways they are rated better than Snap On. And 1/4 the price. They have the best prices trust me I researched for about a month. And free shipping!!!"
-John H., Lowell, Arkansas
Rollcabs.com complete tool storage product line is strictly manufactured by Extreme Tools.
The RX Series, made by Extreme Tools, has been modified by us, with improvements and upgrades, and is called the R-CRX Series on this website.
The following list of improvements are reflected in the R-CRX Series.
Part number (Extreme's "RX" Series) change to R-CRX to designate the following upgrades:
- All boxes with the R-CRX prefix are labeled RollCabs.com and follow the same warranty as Extreme Tools products.
- On this R-CRX tool box, the load capacity is 150 lbs. for each set of ball bearing glides, double glide drawers 300 lbs.
- R-CRX series use rubber drawer liners in place of foam drawer liners
- R-CRX series roll cabinets include new, thick protective work panel in place of foam pad.
- All R-CRX toolboxes are not only reduced in price but have added benefits compared to the RX Series Extreme Tools' tool boxes!
